Plastic Concepts Polypropolene Casework
Description
 |
| Standard 2-foot Wall Cabinet Casework |
 |

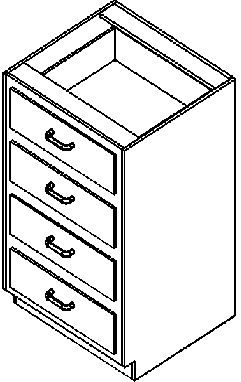

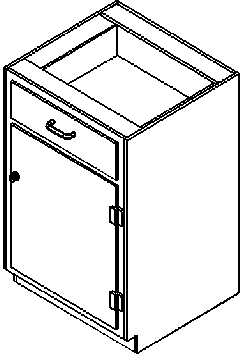

| Standard 2-foot Base Cabinet Casework |
Plastic Concepts, Inc.'s Polypropylene Casework is constructed of 1/2" and 3/8" thick stress relieved white polypropylene, all seams are fully welded for maximum strength and durability. Polypropylene is an extremely durable and non-corrosive material that cleans easily and does not stain. Polypropylene is a solid surface and maintains its appearance and color. Plastic Concepts, Inc. casework is equipped with quality components, from all stainless steel full extension drawer glides to polypropylene hinges. All edges are rounded for a safe and corner free work environment. The cabinets can be used individually or in series with other cabinets giving the user the ability to choose from the available styles to create a lab or Cleanroom to suit their own needs. Please see the attached charts for sizes and pricing. If there is a size or style that is not represented drawings can be provided upon request. Modifications or custom designs are also available upon request.
To obtain a customized quotation, please contact PCI technical representatives with the following model number information:
Base Model Code:
WC – Wall Cabinet
BC – Base Cabinet with Drawer and Door
BD – Base Cabinet with Door
BE – Base Cabinet with Drawers
WS – Wall Shelves
WP – Wall Pass Thru
CL – Closet
OO – Other
Width / Depth / Height:
XX - YY - ZZ
Modifiers:
# SDH – Solid Door Hinged
# CDH – Clear Door Hinged
# SDS – Solid Door Slides
# CDS – Clear Door Slides
# FS – Fixed Shelves
# AS – Adjustable Shelves
# DR – Drawers
# TT – Tiers
# PA – Partitions
# O1 – Other
# CE – Blind Corner Extensions
 |
| Standard 4-foot Wall Cabinet Casework |
 |

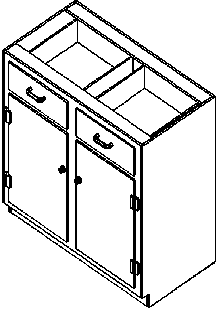

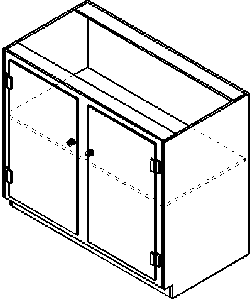

| Standard 4-foot Base Cabinet Casework |
Plastic Concepts, Inc.’s upper casework is available standard with the following optional features:
- Clear acrylic sliding doors
- Hinged doors
- Two adjustable shelves
- Open shelf units
- Full wall storage cabinets
- Blind corners
- Security cabinets (key lock)
- Peg board back panels
- Internal dividers
Plastic Concepts Polypropylene Casework and storage units are designed to meet or exceed a wide variety of uses and environments. PCI can design or modify any casework to maximize the use of valuable space.
PCI carries a wide variety of all plastic fixtures in polypropylene, PVDF, and PVC including:
- Goosenecks
- Deck and wall mounted gas turrets
- Needle valves
- DI and N2 spray guns aspirators
 |
 |
| Standard 4-foot Casework |
| Description |
W x H x D |
| base cabinet drawer/door |
18" x 30" x 22" |
| 24" x 30" x 22" |
| 36" x 30" x 22" |
| 48" x 30" x 22" |
| base cabinet three drawer |
18" x 30" x 22" |
| 24" x 30" x 22" |
| 36" x 30" x 22" |
| 48" x 30" x 22" |
| base cabinet four drawer |
18" x 30" x 22" |
| 24" x 30" x 22" |
| 36" x 30" x 22" |
| 48" x 30" x 22" |
| base cabinet acid storage |
18" x 30" x 22" |
| 24" x 30" x 22" |
| 36" x 30" x 22" |
| base cabinet sink unit |
18" x 30" x 22" |
| 24" x 30" x 22" |
| 36" x 30" x 22" |
| base cabinet sink w/ shelf |
18" x 30" x 22" |
| 24" x 30" x 22" |
| 36" x 30" x 22" |
| base cabinet blind corner |
48" x 30" x 22" |
| 55" x 30" x 22" |
| 65" x 30" x 22" |
| base cabinet knee space |
18" x 30" x 22" |
| 24" x 30" x 22" |
| 36" x 30" x 22" |
 |
 |
| Standard 2-foot Casework |
| Description |
W x H x D |
| upper cabinet clear hinged door |
18" x 30" x 13" |
| 24" x 30" x 13" |
| 36" x 30" x 13" |
| 48" x 30" x 13" |
| upper cabinet solid hinged door |
18" x 30" x 13" |
| 24" x 30" x 13" |
| 36" x 30" x 13" |
| 48" x 30" x 13" |
| upper cabinet clear sliding doors |
18" x 30" x 13" |
| 24" x 30" x 13" |
| 36" x 30" x 13" |
| 48" x 30" x 13" |
| upper cabinet solid sliding doors |
18" x 30" x 13" |
| 24" x 30" x 13" |
| 36" x 30" x 13" |
| 48" x 30" x 13" |
| upper cabinet pass thru sliding clear doors |
18" x 30" x 13" |
| 24" x 30" x 13" |
| 36" x 30" x 13" |
| 48" x 30" x 13" |
| upper cabinet pass thru hinged clear doors |
18" x 30" x 13" |
| 24" x 30" x 13" |
| 36" x 30" x 13" |
| 48" x 30" x 13" |
| upper cabinet blind corner hinged door |
18" x 30" x 13" |
| 24" x 30" x 13" |
| 36" x 30" x 13" |
| 48" x 30" x 13" |
| upper cabinet open shelves |
18" x 30" x 13" |
| 24" x 30" x 13" |
| 36" x 30" x 13" |
| Counter Top with |
| 3/4" polypropylene white |
| 3/4" polypropylene black |
| 1" polypropylene white |
| 1" polypropylene black |
| 3/4" polyethylene white |
| 3/4" polyethylene black |
| 1" polyethylene white |
| 1" polyethylene black |
| Description |
W x H x D |
| wall cabinet clear hinged door
| 30" 84" 22"
|
| 36" 84" 22"
|
| 48" 84" 22"
|
| 48" 30" 13"
|
| wall cabinet solid hinged door
| 30" 84" 22"
|
| 36" 84" 22"
|
| 48" 84" 22"
|
 |

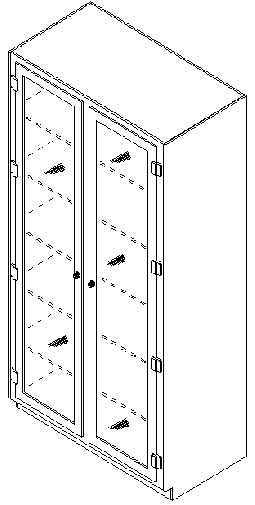

| Standard 4-foot Closet Casework |
