Plastic Concepts Laminar Flow Hood

Description

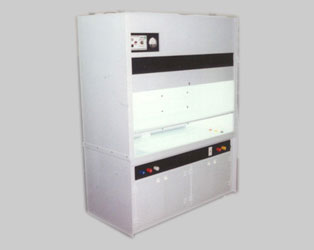

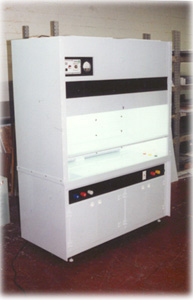

The Plastic Concepts, Inc. Standard Laminar Flow Hood is constructed of stress relieved 1/2” thick white polypropylene, an extremely durable and non-corrosive thermoplastic, highly resistant to most acids, solvents, and other corrosives. Polypropylene also offers non-conductive properties as well. The hood is designed to operate with a face velocity of 80-120 FPM. The full width plenum with adjustable dampers provides maximum efficiency for fume removal. The base cabinet is fully supported with adjustable levelers for easy installation. Each Plastic Concepts hood comes with an operations manual, including test data and certification, written warranty, and installation instructions.

Process

Semiconductor and Microelectronic fabrication and assembly

Biological (Biotech and Biomedical) and Pharmaceutical applications

Grinder and sanding operations

Etching, plating, coating, and cleaning applications

Construction:

Main construction of hood is thermal stick welding that provides a strong, durable and long lasting joint attachment. All edges are chamferred to ensure maximum weld area that will not delaminate.
All polypropylene valves, hinges, and plumbing
Vented base cabinet for storage of acids and chemicals. Base cabinet can serve as secondary containment.
Lip exhaust is designed to provide air for the hood even in the event the sash is fully closed.
Counter balanced adjustable sash, made of acrylic.
Electrical, 115v, 15 amps for lights and blowers.
Internal wiring: 12/3 gauge cord with rubber coating
Fume hood supported by a painted steel frame with stainless steel leveling feet
Operation manual and test certification

Equipment:

Variable speed blower
Vapor-proof fluorescent lighting
HEPA Filter, 99.99% efficient on .3 microns
Pre-filter, large contaminant particle removal
Magnehelic air pressure gauge to monitor HEPA filter replacement
Audible alarm monitoring exhaust pull

Options:

Sash available positioning: fixed or hinged
Sash materials: PVC, Polycarbonate (Lexan) or Safety Glass
Digital readout velocity meters
Automated velocity controller to maintain a constant velocity setting as sash is adjusted
Amber lighting for photo-resist
Hood colors: blue, black or combinations of colors
Static control devices
G.F.I. receptacles
Fixtures: serrate cocks for gas, air, vacuum and liquid, N2 and DI guns
Glove and side ports
Casters on the base for easy re-location.
